High-Performance Galvanized Steel Coil: Engineering Durability & Efficiency
As leading galvanized steel coil suppliers, we provide industrial-grade solutions engineered for extreme environments. Our galvanized steel coil (also known as GI coil) undergoes a rigorous hot-dip process, resulting in a metallurgical bond that protects the carbon steel coil substrate against atmospheric corrosion and oxidation.
Technical Excellence & Global Standards
Our manufacturing facilities are recognized among top galvanized steel coil manufacturers for adhering to international benchmarks, including ASTM A653, EN 10346, and JIS G3302. By optimizing the chemical composition of the base carbon steel coil, we ensure superior formability and weldability for diverse industrial applications.
-
Zinc Coating Range: Z60 to Z275 $g/m^2$ to meet specific service life requirements.
-
Surface Finishes: Available in regular spangle, minimized spangle, and zero spangle for aesthetic versatility.
-
Structural Integrity: Enhanced tensile strength tailored for heavy-duty construction, HVAC systems, and automotive framing.
Why Partner with Specialized Manufacturers?
Sourcing directly from verified galvanized steel coil manufacturers ensures traceability and material consistency. Whether you require high-ductility grades for deep drawing or high-yield strength for structural purlins, our GI coils provide a cost-effective alternative to stainless steel without compromising on longevity.
Galvanized Steel Coil (GI) Technical Specifications
| Feature | Technical Parameters | Common Standards / Grades |
| Base Material | Carbon Steel Coil (Cold Rolled) | SPCC, CS Type A/B/C, S250GD |
| Thickness Range | 0.12 mm – 4.0 mm | Tolerance: ±0.02 mm |
| Width Range | 600 mm – 1500 mm | Slitting available (e.g., 914mm, 1219mm) |
| Zinc Coating | 30 g/m2 – 275 g/m2 | Z60, Z120, Z180, Z275 (High Grade) |
| Surface Structure | Regular, Minimized, or Zero Spangle | Depending on aesthetic & paint needs |
| Surface Treatment | Chromated, Oiled, Anti-fingerprint | Cr6+ free / Eco-friendly options |
| Internal Diameter | 508 mm / 610 mm | Standard export eye-to-sky/wall |
| Mechanical Properties | Yield Strength: 280-550 MPa | Tensile Strength: 350-600 MPa |

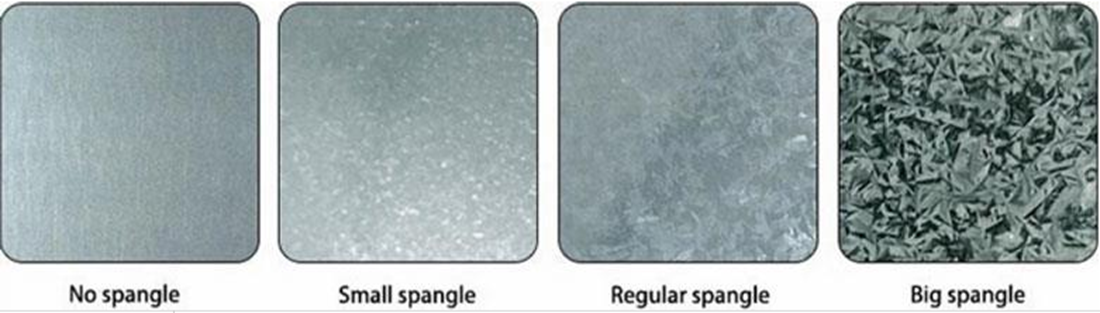

Galvanized Steel Spangle
Galvanized spangles are the zinc crystal patterns naturally formed on the surface of hot-dip galvanized steel during solidification. Different spangle sizes affect surface appearance, paint adhesion, and forming performance.
We supply multiple finishes to meet various application needs:
-
Big Spangle – large visible zinc flowers, traditional look, economical for roofing and structural use
-
Regular Spangle – standard commercial finish for general construction
-
Minimized Spangle – smoother surface, improved forming and light painting
-
Zero Spangle – uniform matte finish, ideal for PPGI and high-end coating applications
Custom spangle control is available based on project requirements.
Manufacturing Experience & Quality Control

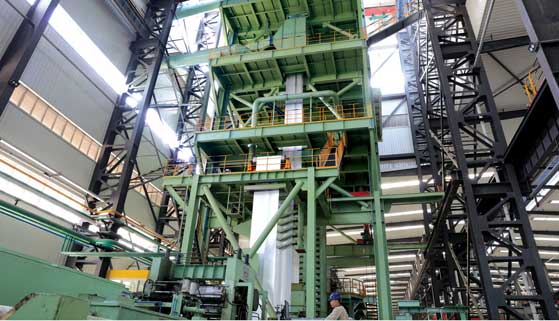

With over 15 years of experience in galvanized steel coil production, we operate a fully integrated hot-dip galvanizing line from raw material selection to final export packaging.
What makes our manufacturing reliable?
✔ Continuous Hot-Dip Galvanizing Line (CGL)
✔ Automatic thickness & zinc coating control
✔ Stable production for large-volume orders
✔ Monthly capacity: 8,000–12,000 MT
✔ Fast delivery: 15–25 days
Our factory supplies contractors, roofing manufacturers, distributors, and roll-forming companies across South America, Middle East, Southeast Asia, and Africa.
Quality Control We Perform
Coating Tests
-
Zinc coating weight (g/m²)
-
Thickness measurement
-
Adhesion test
-
Spangle uniformity check
Mechanical Tests
-
Yield strength
-
Tensile strength
-
Elongation
-
T-Bending test
Durability Tests
-
Salt spray test
-
Corrosion resistance
-
Surface defect inspection
Appearance Tests
-
Flatness
-
Scratch resistance
-
Edge quality
-
Color & gloss consistency
Why Choose our Hot dip Galvanized steel coil ?
With years of hands-on experience in galvanized steel production and global export, we understand that consistency, corrosion resistance, and reliability matter most to our customers.
We use carefully selected steel substrates and strict zinc coating control (Z40–Z275) to ensure uniform coating thickness and long-term corrosion protection. Every galvanized steel coil is produced under standardized process control, from surface pretreatment and hot-dip galvanizing to final inspection.
Our quality control team performs routine checks on coating thickness, adhesion, surface appearance, and mechanical properties, in accordance with international standards such as ASTM, EN, and JIS. Inspection reports and third-party testing are available upon request, ensuring full transparency and traceability.
Backed by stable production capacity and export experience across multiple markets, we provide reliable supply, flexible specifications, and technical support to help customers choose the right galvanized steel coil for roofing, construction, fabrication, and industrial applications
